1376384-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1376384-1
Datasheet:
Description:

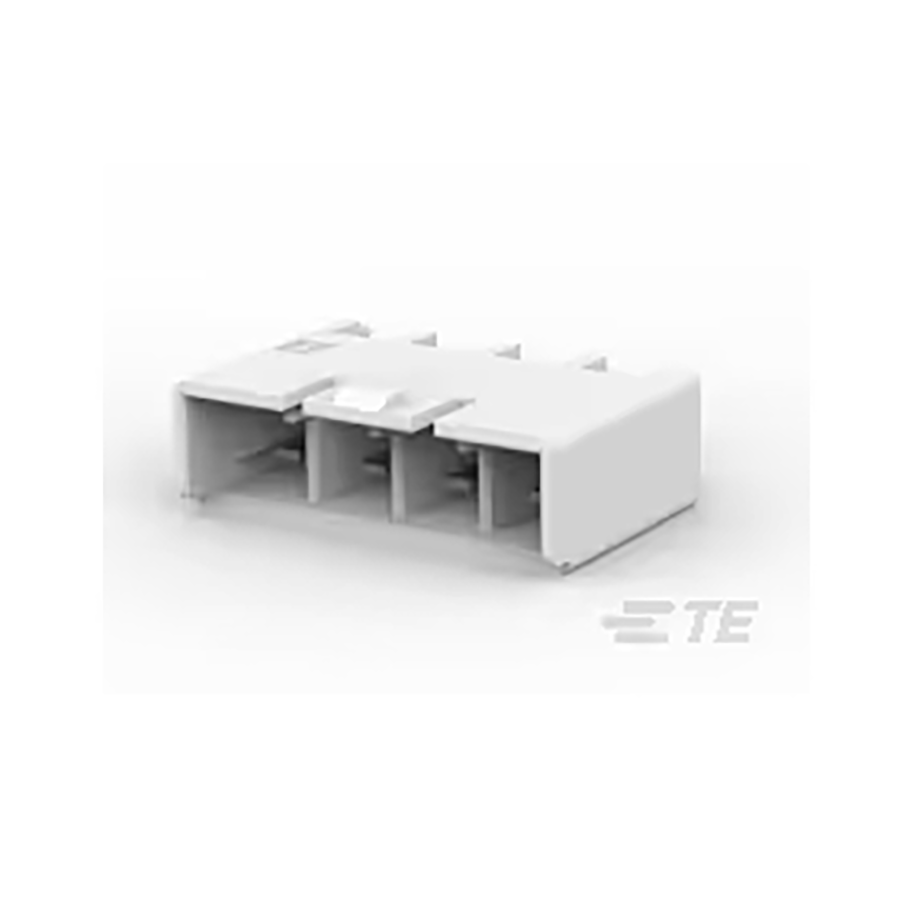

Headers and Wire Housings Through Hole Pin Number of Positions:4 Pitch:5 mm
| Parameter | Value |
|---|---|
| Length | 21.6 mm |
| Width | 14.097 mm |
| Termination | Kinked Pin, Press-Fit, Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -30 °C |
| Height | 13.97 mm |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 7 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Lead Length | 3.5 mm |
| Pitch | 5 mm |
| Number of Terminals | 4 |
| Current Rating | 9 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Vertical |
| Operating Supply Voltage | 300 V |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Color | Natural |
| Number of Contacts | 4 |
| ELV | Compliant |
| Connector Type | Pin |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Number of Ports | 1 |
| Fastening Type | Ramp |
| Circuit Application | Power |
| Connector System | Wire-to-Board |
| Contact Style | Pin |
| Max Voltage Rating (AC) | 300 V |
| Contact Current Rating | 10 A |
| Housing Color | Natural |
| Plating | Tin |
| PCB Thickness | 40.64 mm |
| Contact Gender | Male |
| Number of Power Positions | 4 |
| Mating Post Length | 6.2992 mm |
| Number of Signal Positions | 0 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Sealable | No |
| Contact Retention | Without |
Stock: 2112
Distributors
pcbx
pcbxUnit Price$0.59467
Ext.Price$0.59467
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.59467 | $0.59467 |
| 10 | $0.50623 | $5.06230 |
| 25 | $0.47939 | $11.98475 |
| 50 | $0.45398 | $22.69900 |
| 100 | $0.42991 | $42.99100 |
| 300 | $0.40616 | $121.84800 |
| 500 | $0.38372 | $191.86000 |
| 1000 | $0.36540 | $365.40000 |
| 3000 | $0.34523 | $1035.69000 |
| 5000 | $0.32618 | $1630.90000 |
| 10000 | $0.31062 | $3106.20000 |
